The Strand wider network Improvements



CRLL’s contract 8 includes improvement works at The Strand in Parnell.

The works were delivered by KiwiRail to help create a more reliable and resilient rail service.


The Strand crossover

Strand flyover.png

The former Strand train station in Parnell was re-opened in 2011 to be a stabling yard for Auckland Transport’s Electric Multiple Unit (EMU) trains, to be a platform for KiwiRail’s Northern Explorer and to act as an emergency back-up station to Britomart if needed.

Once the CRL is operational, The Strand works mean there can be an increased frequency of trains on the Auckland rail network.

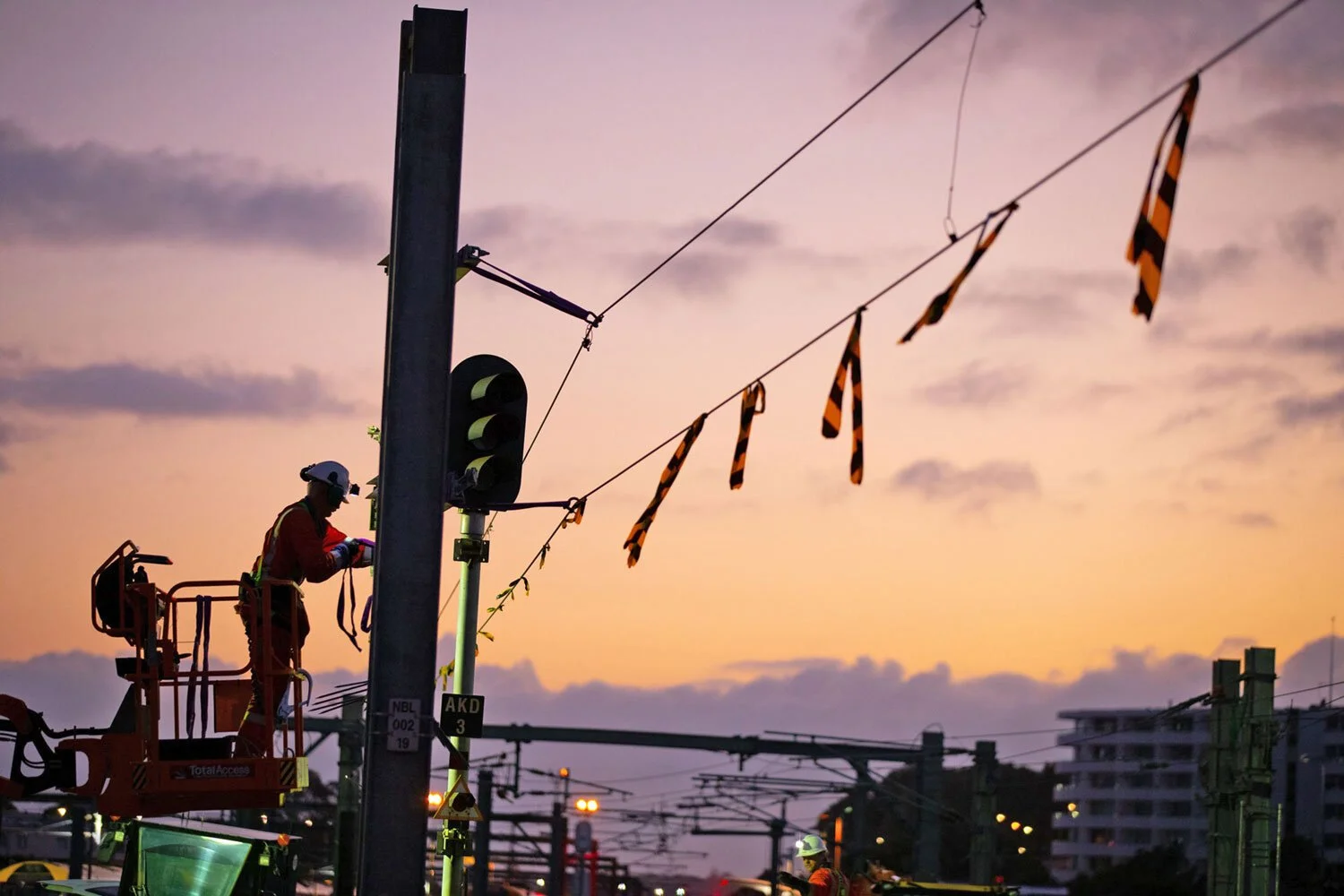

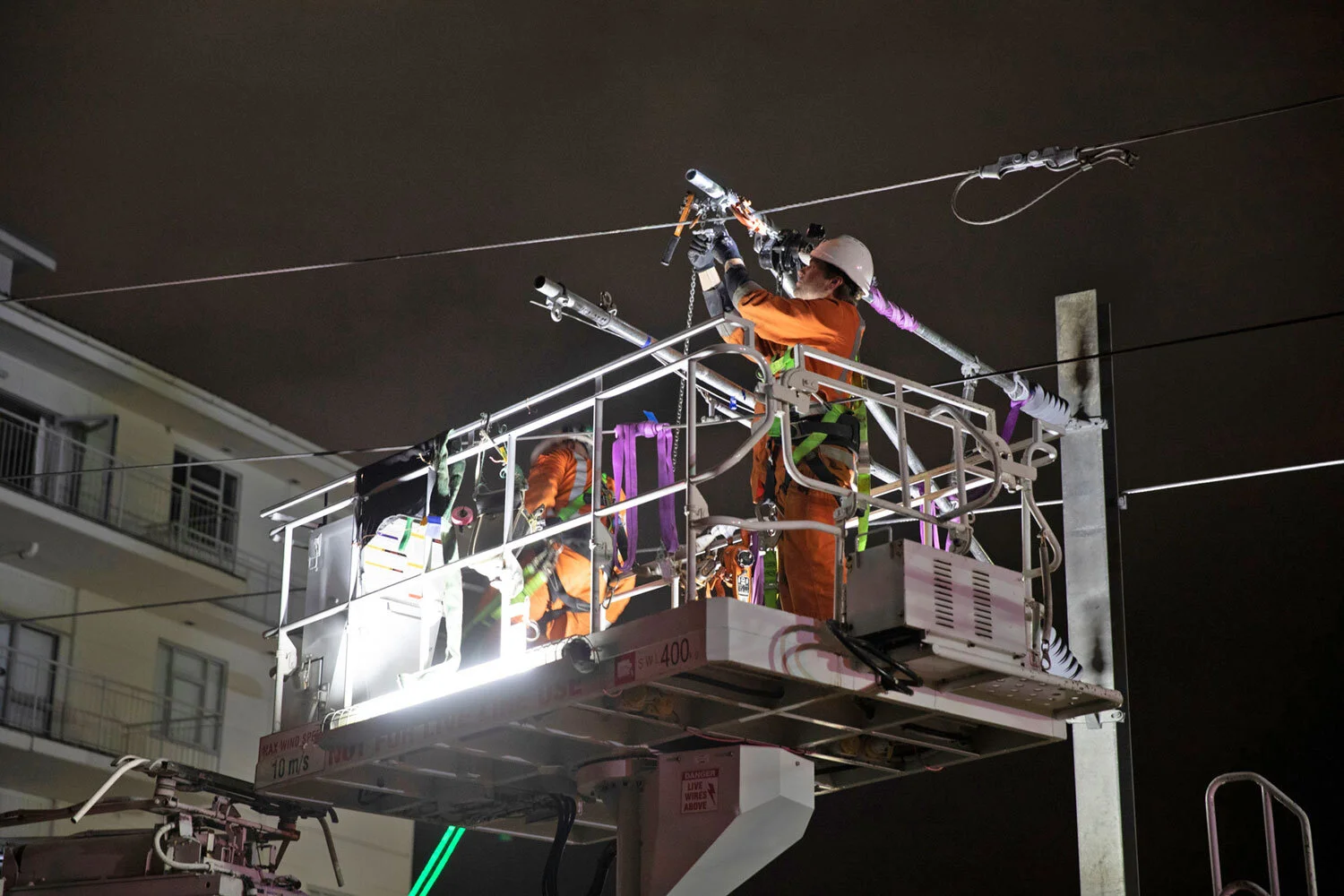

Strand OLE worker Jan 2019.jpg

KiwiRail’s construction work on The Strand crossover project ran until the end of January 2019. The modifications to rail infrastructure are needed to support the City Rail Link (CRL) once it is up and running.

This is an exciting milestone for City Rail Link Limited as the crossover project is the first construction project to be completed from a wider suit of contracts for the CRL.

It is also the first collaborative delivery between KiwiRail and CRLL on the wider network.

Strand platform 22 Jan 2019.jpg

Over five months, KiwiRail installed a new track cross-over point, modified the track, overhead lines and signal equipment and relocated all of the underground services through the construction area.

Trains now have easier access to the ‘stabling yard’ in Parnell. This is the area where morning peak service trains which terminate in the city are ‘stabled’ before they come back into service for the evening peak.

The result is now more trains can run more often on the city’s network.

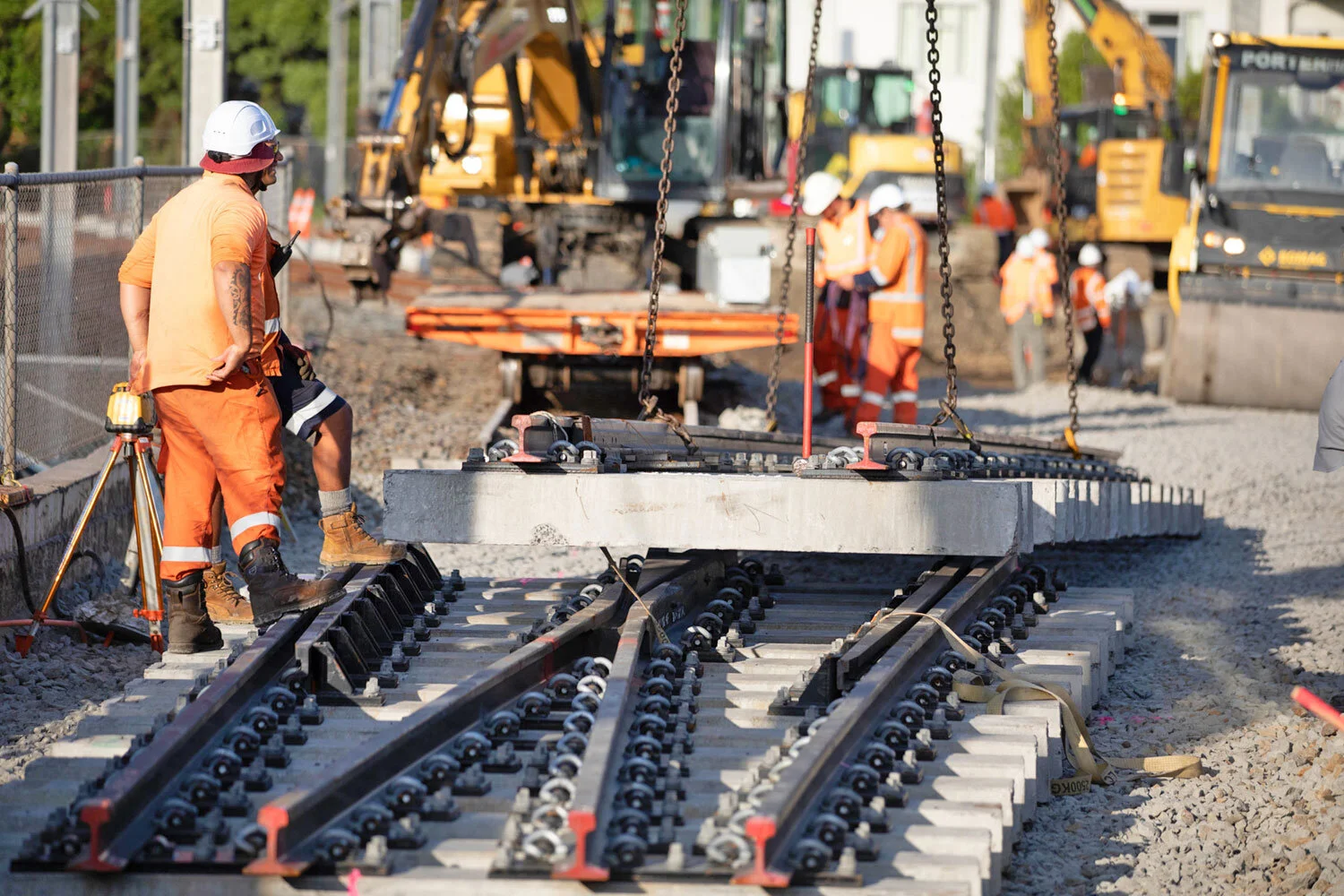

Strand Jan 2019.jpg
We carefully co-ordinated and sequenced works to make the most of our access to the area during the blocks of line, to reduce the impact on neighbours and commuters. KiwiRail is proud to contribute to a more reliable and resilient rail service for Auckland city and to be a part of the largest transport infrastructure project undertaken in New Zealand
— Dave Brierley, KiwiRail project manager

OLD AND NEW

STRAND: The old track

STRAND: The old track

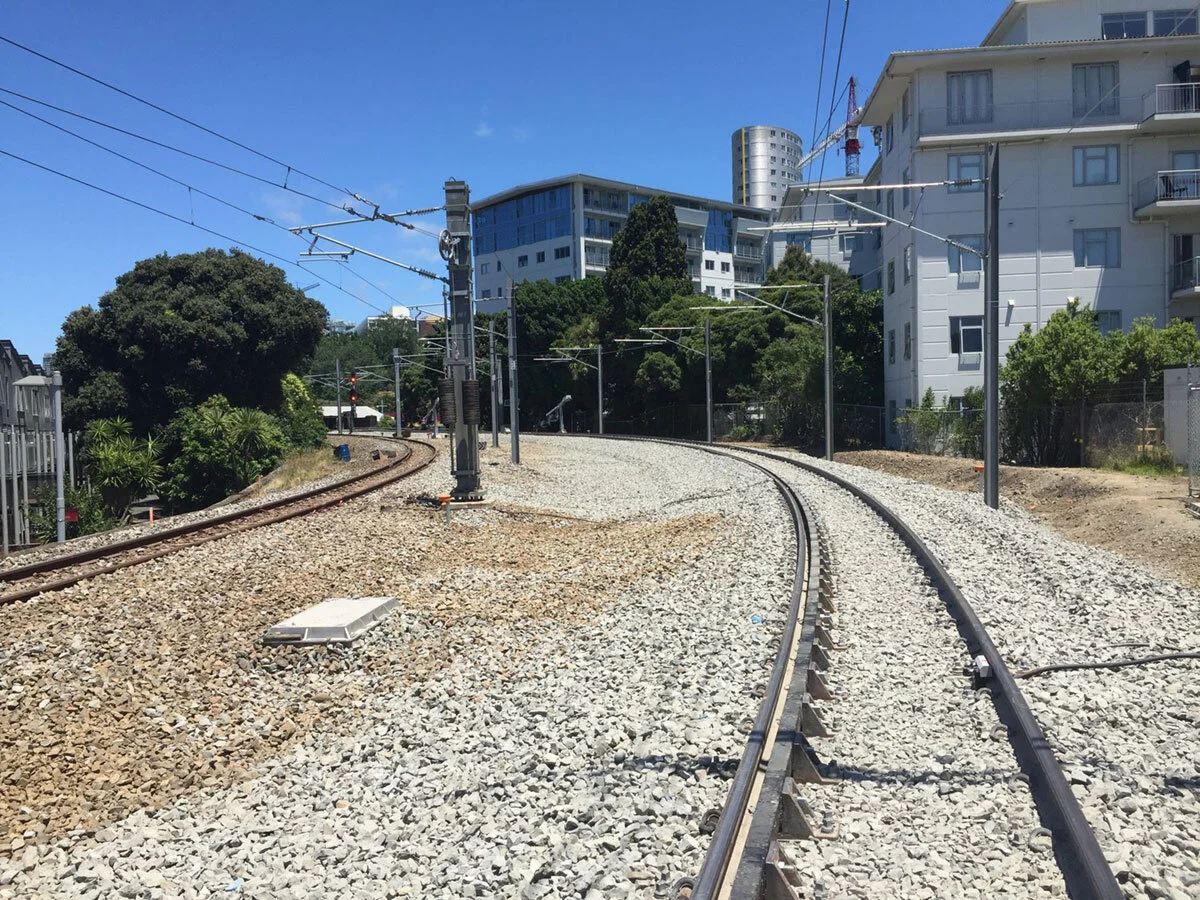

NEW: The new look

NEW: The new look


THE NUMBERS

More than 300 trains per day run along this section of the line .

KiwiRail installed:

  • 10 new traction masts,

  • 4 signal masts

  • Over 200 sleepers

  • 140 metres of new rail tracks

  • Moved 1400 cubic metres of dirt.

  • All undamaged, replaced sleepers and rail have been kept for appropriate reuse elsewhere on the network. KiwiRail recycled all cable and metal waste from the project.

This KiwiRail video explains the project.


VIDEO: TIME LAPSE OF THE WORK

MORE IMAGES

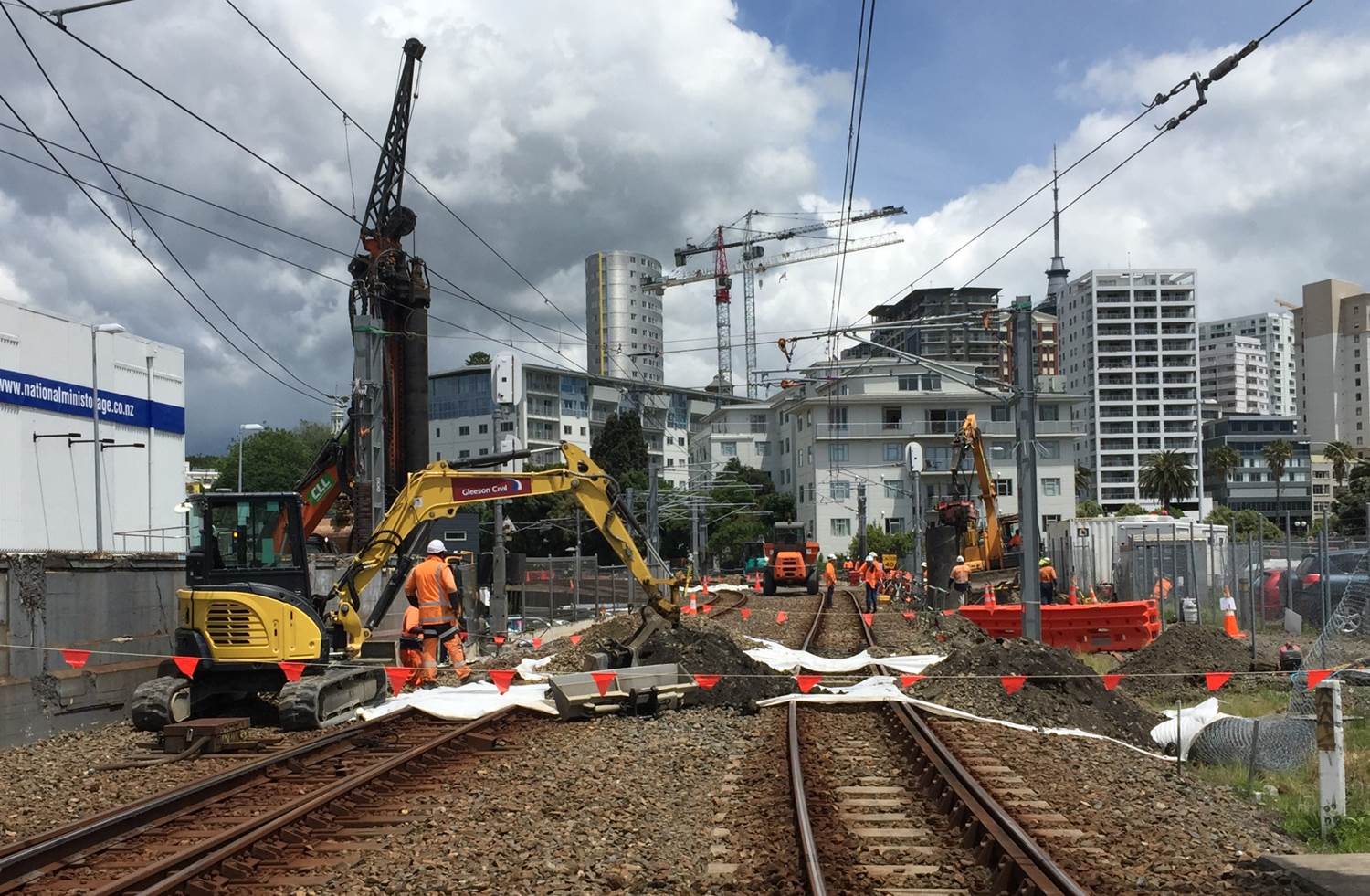

The first work took place on 17 and 18 November. Here are photos of the work taking place.

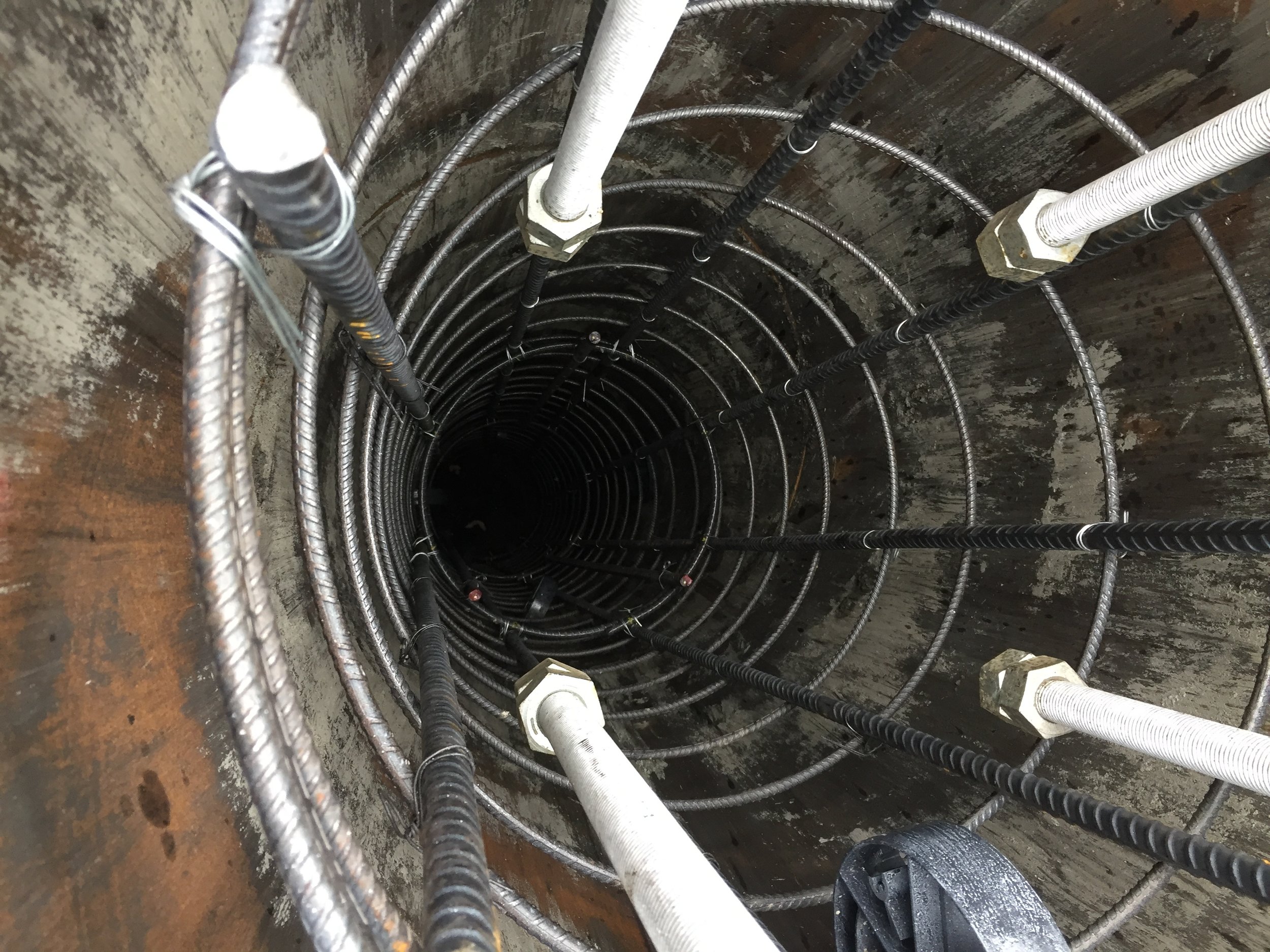

Pile reinforcement cage

Pile reinforcement cage

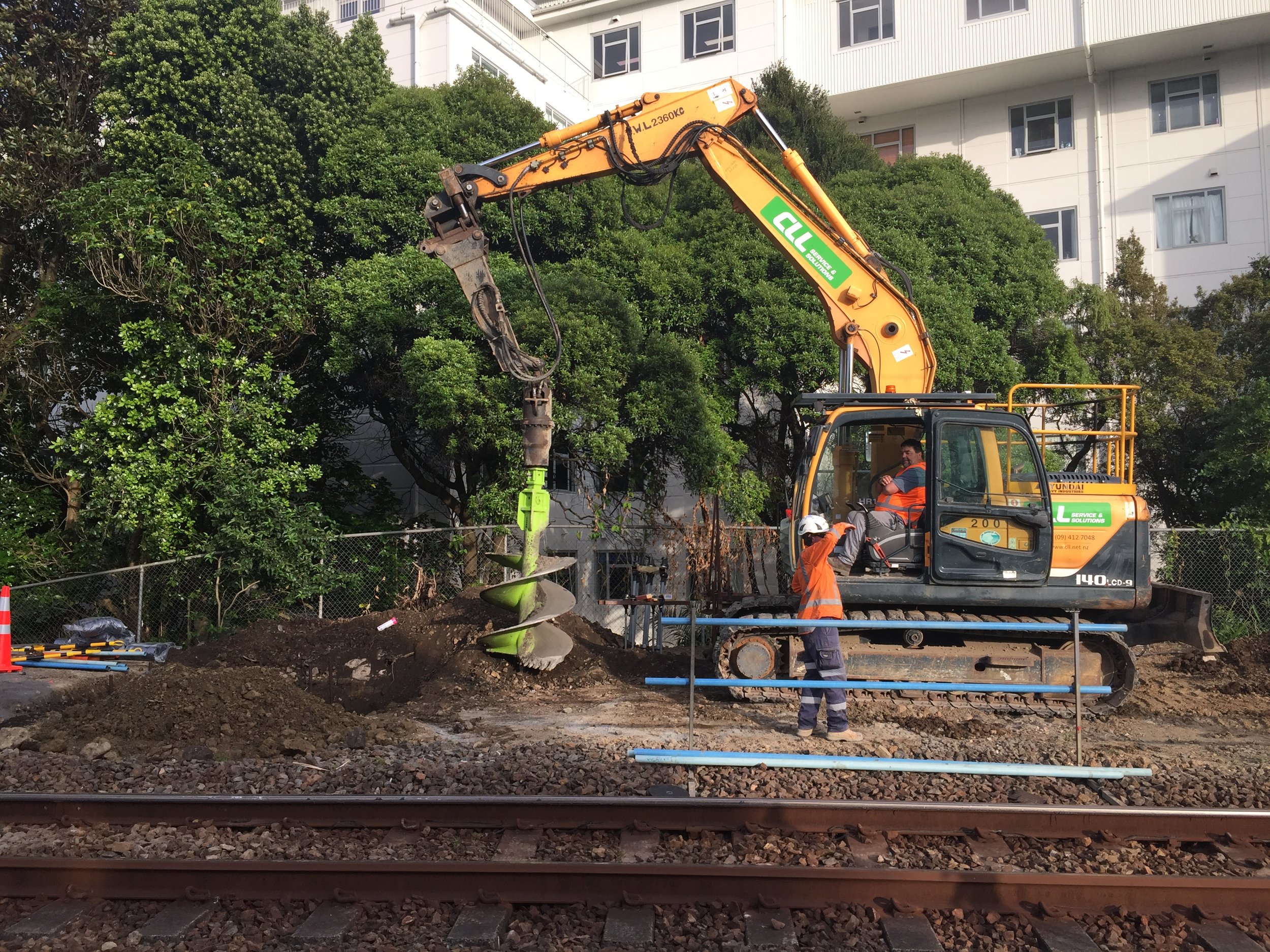

14 tonne excavator and 750mm earth drill

14 tonne excavator and 750mm earth drill

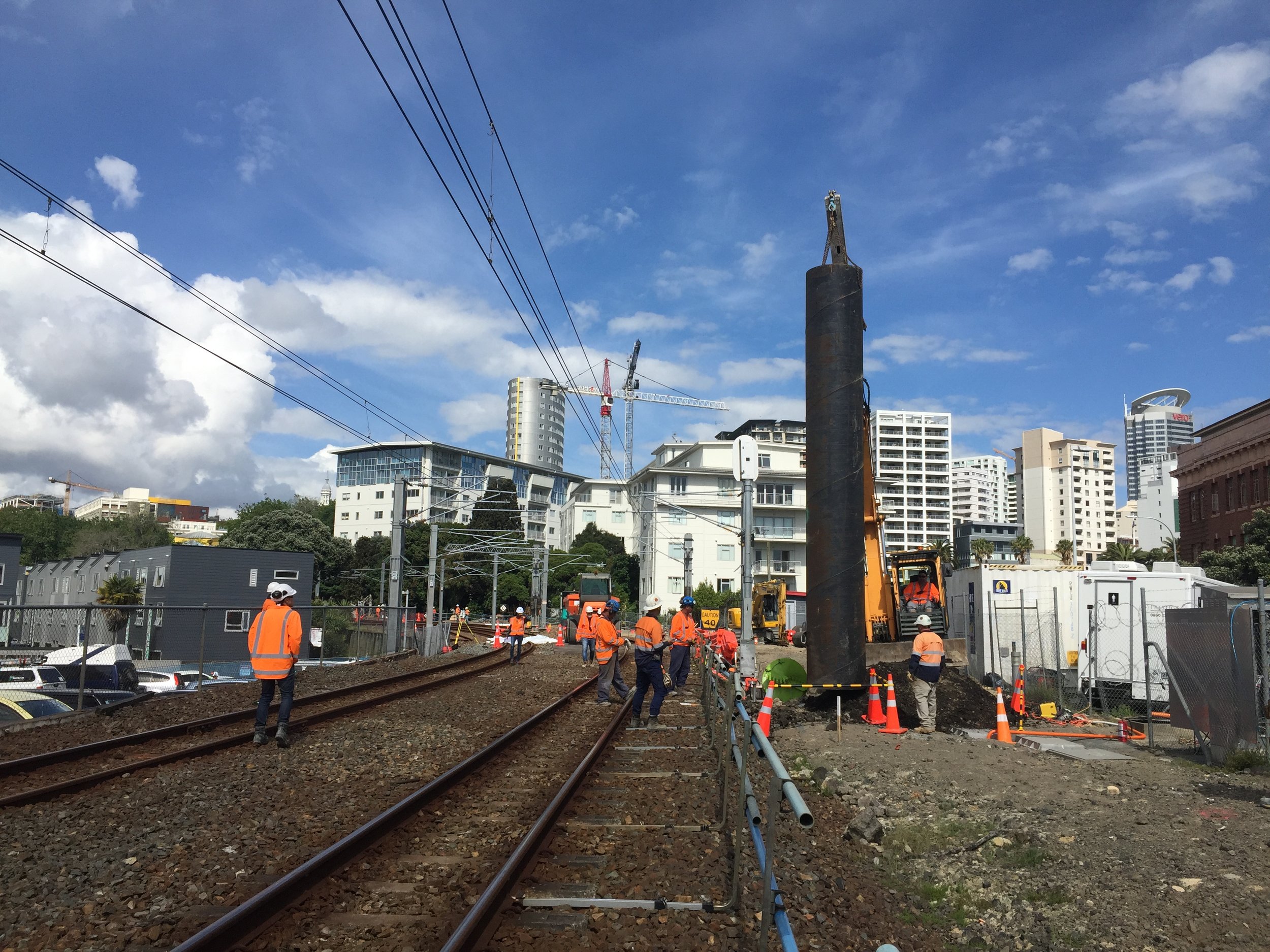

Installation of pile casing

Installation of pile casing

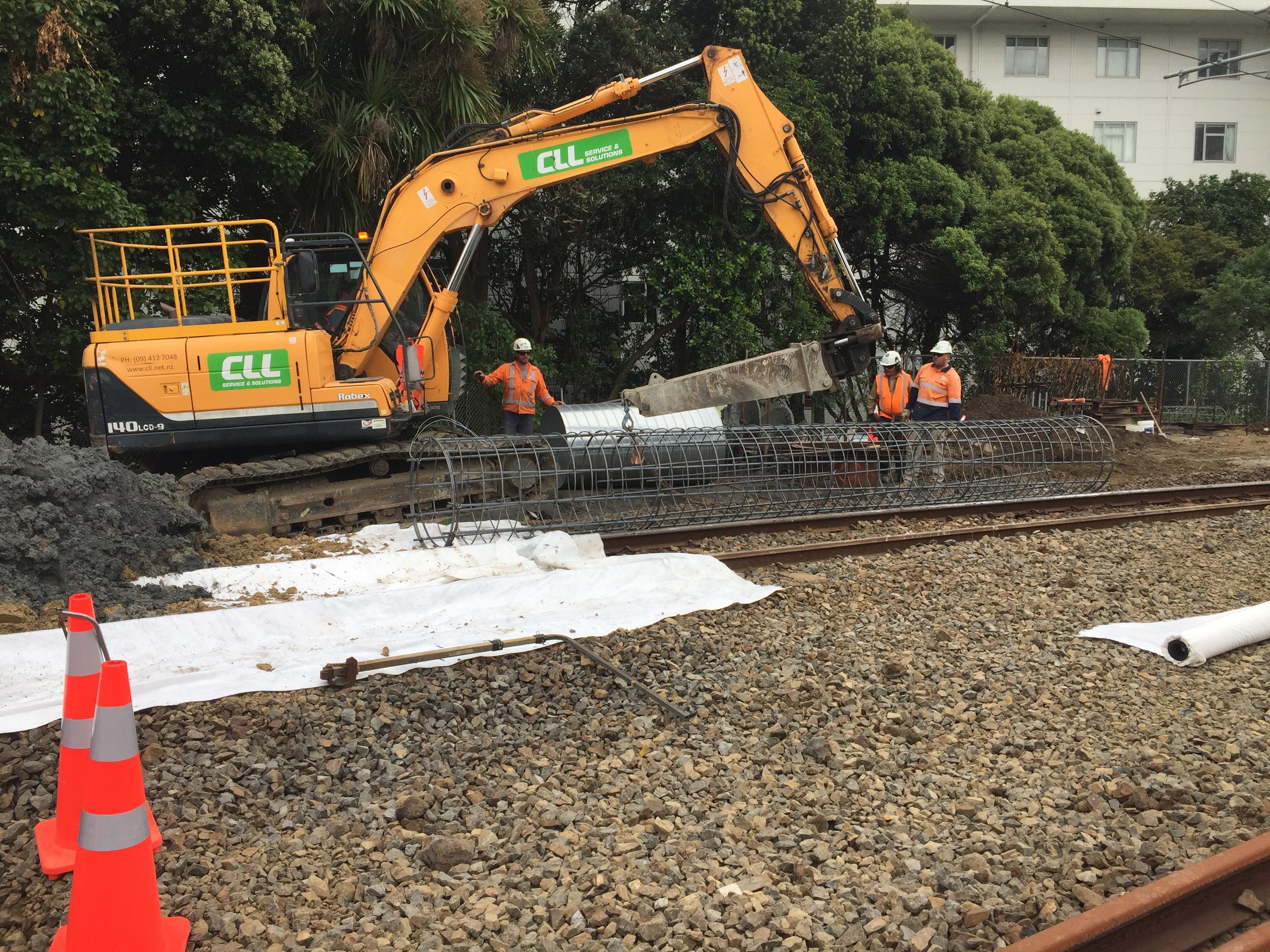

8m x 1m diameter reinforcement cage

8m x 1m diameter reinforcement cage

Excavation for under track crossing

Excavation for under track crossing

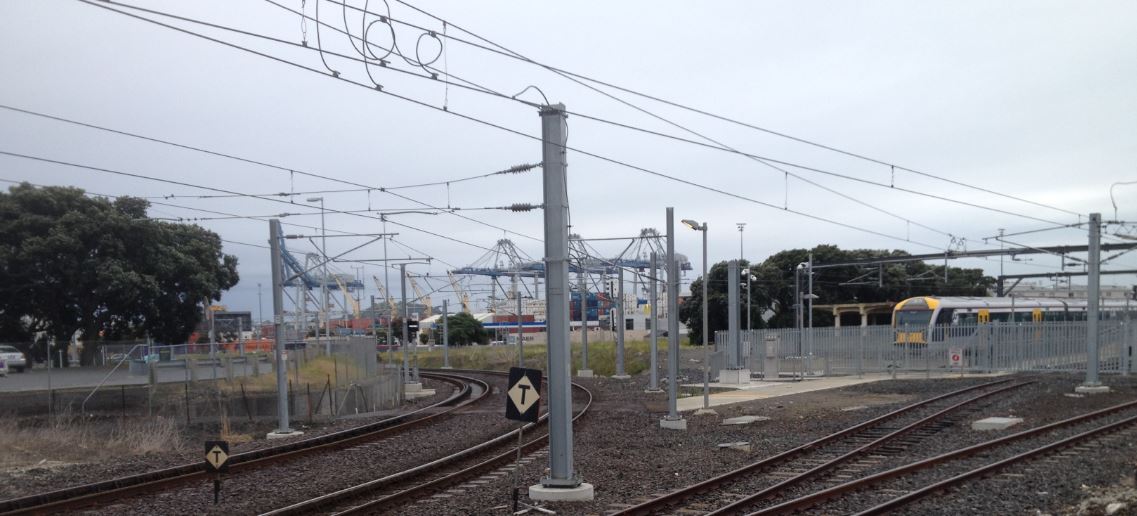

STABLING: The entrance to The Strand stabling yard

STABLING: The entrance to The Strand stabling yard

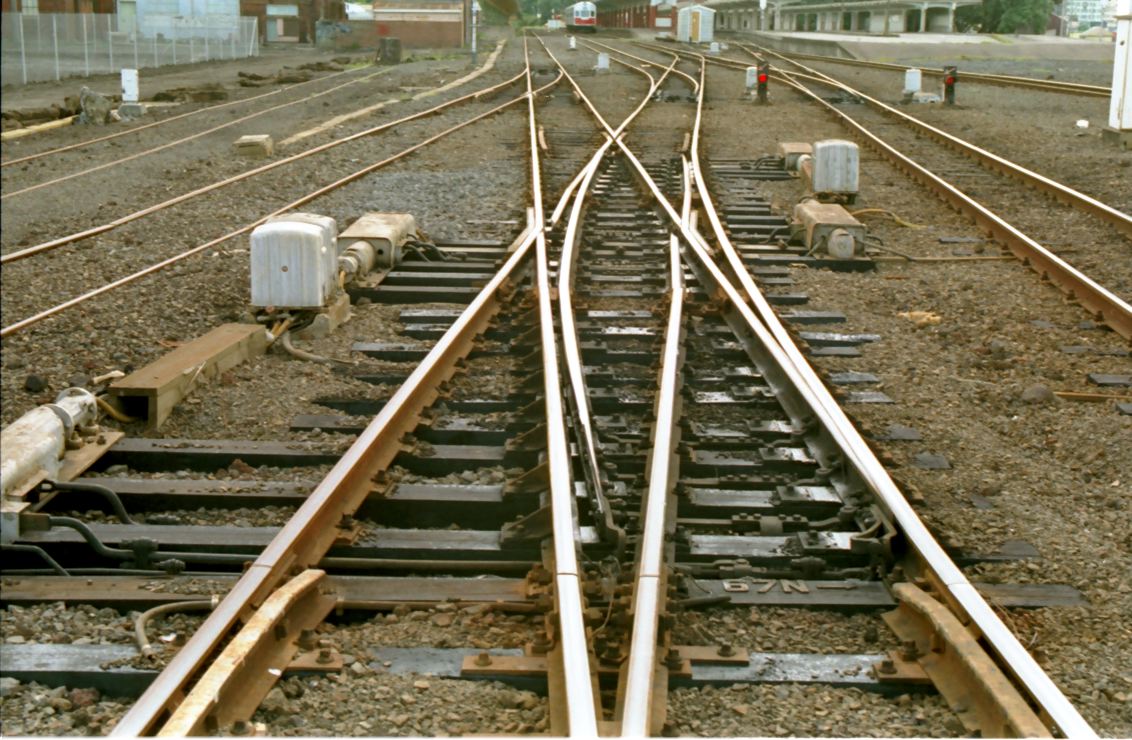

CROSSOVER: The new crossover will enable trains to pass more frequently while entering and exiting Britomart

CROSSOVER: The new crossover will enable trains to pass more frequently while entering and exiting Britomart
